Interactive Lab Assistant: Converter drives with DC motors 1 kW

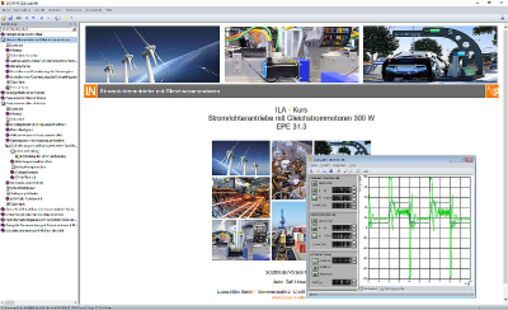

This instruction manual makes up an Interactive Lab Assistant course. This multimedia course guides you step-by-step through the aspects of modern power converter drives with DC motors. The fundamentals are conveyed using easily understood animations. Interactive Lab Assistant, combined with virtual instruments for controlling the hardware, provides a very user-friendly experiment platform.

Features:

• Interactive experiment set-ups
• Measurements and graphics can be saved within the experiment instructions by means of drag and drop
• Virtual instruments can be started directly from the experiment instruction pages themselves
• Questions with feedback and evaluation logic for checking student progress
• Print-compatible document for comfortable
• printing of experiment instructions with solutions
• Labsoft browser, course software and virtual instruments

Training contents:

• Closed-loop speed control in quadrants 1 to 4 with and without secondary current control
• Open-loop speed control with simple current converter
• Open-loop speed control with double current converter
• Four-quadrant operation, energy recovery
• Closed-loop speed control, closed-loop current control, cascade control, adaptive control
• Computer-based controlled system and controller analysis and parameter setting
• P, PI and PID control
• Optimization of controller
• Course duration: approx. 10 h
