EPL 25 Frequency converters project work kit

EPL 25 Frequency converters project work kit

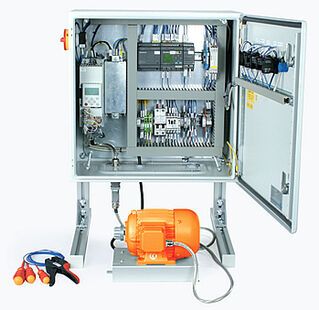

The training system conveys in practical fashion how industrial components are built and wired in a control cabinet. Using frequency converters and miniature control units, it is possible to assemble projects which are typical of industrial installations, to set their parameters and to test them.

Training objectives:

  • Creating and analyzing circuit diagrams
  • Electromagnetically compatible assembly and wiring of a control cabinet with industrial components
  • Operating the cabinet
  • Approval according to DIN EN standards
  • Protective earth measurements
  • Insulation measurement
  • Setting parameters for frequency converters
  • Programming a miniature control system using LOGO

Weboffer

 0 Article
Equipment set / product

Basic equipment set, consisting of:
1
Industrial switch cabinet with stand
Industrial switch cabinet with stand SE2670-7Y
1
Accessories for frequency converters project work kit
Accessories for frequency converters project work kit SE2670-5T
1
Set of materials for frequency converters project work kit
Set of materials for frequency converters project work kit SE2670-5G
1
Three-phase asynchronous motor 0.37kW with industrial connection 230/400V
 Three-phase asynchronous motor 0.37kW with industrial connection 230/400V SE2683-1L
Media:
1
Manual EPL 25, Frequency converters project work kit
Manual EPL 25, Frequency converters project work kit SH5002-3T
Measuring instruments:
1
Insulation tester "Insu 10"
 Insulation tester "Insu 10" LM2333
1
Multi13S digital multimeter
 Multi13S digital multimeter LM2330
Accessories:
1
Set of tools ''Electric ''
Set of tools ''Electric '' SE2670-4B
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
