EMW 10 Making transformer windings

EMW 10 Making transformer windings

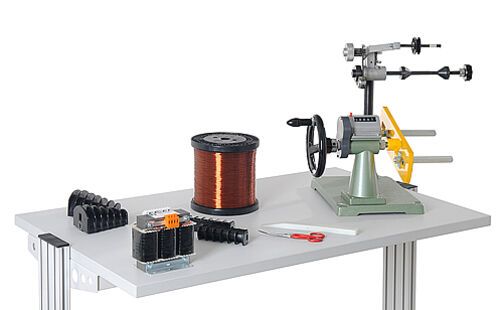

This training system takes a hands-on approach to teach how a three-phase transformer is constructed. It is possible to put together a completely functional transformer, the response of which can be investigated with the aid of a load.

Training objectives:

Electrical and mechanical assembly of single-phase and three-phase transformers
Determining winding data
Making windings
Standard operational testing for transformers
Connection, wiring and commissioning
Differing operating responses with various loads and circuits

Weboffer

0 Article

Real Experience Learning

Interactive learning environment

Downloads

Equipment
Specifications

Tender specifications

Basic equipment set, consisting of:
1		Construction kit for three-phase transformer with terminal plate		SE2670-3S
1		Material for "Transformer windings" kit to build 20 transformers		SE2670-5A

Media:
1		Manual EMW 10, Transformer windings		SH5002-4B

Measuring instruments:
1	Insulation tester "Insu 10"	LM2333
1	Power-Multimeter	CO5127-2A
1	Multi13S digital multimeter	LM2330

Accessories:
1	Miniature winding machine with hand crank, including winding templates	LM8525
1	Set of tools for "Electrical machine windings"	SE2670-4D
1	Set of tools "Electric I"	SE2670-4A
1	Set of safety measurement cables, 4mm, 31 pcs	SO5148-1L
15	Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II	SO5126-3R
2	Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II	SO5126-3V
2	Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II	SO5126-3W
1	SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm	ST7200-7A
