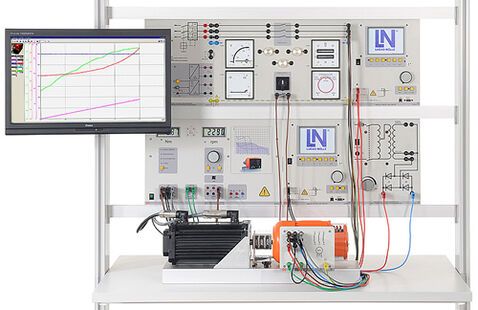

EEM 5.2-1 Mains synchronization 1kW

EEM 5.2-1 Mains synchronization 1kW



In mains synchronization, the unloaded generator is connected to the mains power grid. Voltage, frequency and phase-angle have to coincide with the corresponding variable on the mains power grid. To measure these variables, a variety of different measuring instruments are used. The variables are set by means of the generator speed and generator excitation.

Training contents:

  • Manual mains synchronization is performed using the bright method, dark method and three-lamp synchronization circuits
  • Mains synchronization using the two-range frequency meter, two-range voltmeter, Synchronoscope and zero-voltage meter
  • Influence of generator speed
  • Influence of generator excitation
  • Adjusting energy flow by means of the drive

Weboffer

 0 Article
Equipment set / product

Supplementary equipment set to synchronous machine, consisting of:
1
Synchronization Unit
 Synchronization Unit CO3212-6V
1
Motor protection switch, 3 pole, 1.8-2.5A
 Motor protection switch, 3 pole, 1.8-2.5A CO3212-1P
Accessories:
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
Media:
1
Interactive Lab Assistant: Sync. machines, synchronisation reluc. machines 1 kW
 Interactive Lab Assistant: Sync. machines, synchronisation reluc. machines 1 kW SO2805-2G
Additionally required, dynamic servo machine test stand:
1
Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E)
 Servo machine test stand for 1kW machines incl. software ActiveServo (D,GB,F,E) CO3636-6Y
1
Rubber coupling sleeve for 1kW machines
 Rubber coupling sleeve for 1kW machines SE2662-6A
1
Coupling guard with LED lighting for 1kW machines
 Coupling guard with LED lighting for 1kW machines SE2662-7D
Power supply:
1
Three-phase power supply with motor protection switch
 Three-phase power supply with motor protection switch CO3212-5V
Measuring instruments:
1
Power-Multimeter
 Power-Multimeter CO5127-2A
Accessories:
20
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
2
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
2
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
1
Protected power distribution for working stations
 Protected power distribution for working stations ST8008-8N
Additionally recommended:
1
Display for Drive Technology equipment
 Display for Drive Technology equipment ST8000-5C
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Protection cover for three-level experiment trolleys
 Protection cover for three-level experiment trolleys ST7200-5L
