Interactive Lab Assistant: Positioning with linear axis 0.3 kW

This instruction manual makes up an Interactive Lab Assistant course. This multimedia course guides you step-by-step through the aspects commissioning and parameter setting of a servo drive with linear axis. The fundamentals are conveyed using easily understood animations. Interactive Lab Assistant, combined with virtual instruments for controlling the hardware, provides a very user-friendly experiment platform.

Features:

• Interactive experiment set-ups
• Measurements and graphics can be saved within the experiment instructions by means of drag and drop
• Virtual instruments can be started directly from the experiment instruction pages themselves
• Questions with feedback and evaluation logic for checking student progress
• Print-compatible document for comfortable printing of experiment instructions with solutions

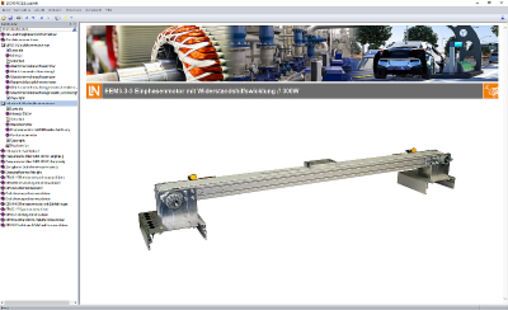

• Labsoft browser, course software and virtual instruments

Training contents:

• Computer-aided commissioning and parameter setting of a servo drive with linear axis
• Positioning and sequence control
• Setting parameters using didactical parametering software
• Search reference function
• Investigating the effects of various controller settings
