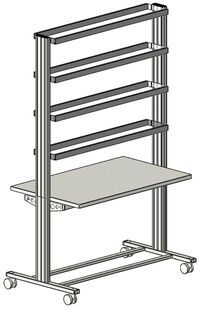

SybaPro mobile experiment trolley, 3 levels, double sided mounting, (1250 x 1995 x 760 mm)
High-quality, mobile experiment and demonstration stand from the SybaPRO range with aluminium table legs, compatible with all add-ons and extensions from the SybaPRO system. The experiment stand can be used from either side and interchangeable perforated sheet metal wall panels and/or training panels in A4 format can be simultaneously attached to the front and back making the trolley particularly suitable for assembly or project work.
The mobile experiment stand will be delivered fully assembled.
Table top:
- Table top made of highly compressed multi-layered chipboard conforming to DIN EN 438-1
- Colour grey, RAL7035, with double-sided 0.8mm slightly textured laminate coating (Resopal) in compliance with DIN 16926
- Resistant to many chemicals and reagents such as dilute acids and alkalis
- Heat resistant, e.g. versus molten solder or heating at specific points by soldering irons or lit cigarettes, for example
- Table tops bordered with solid, impact-resistant edging made of 3mm thick plastic, colour RAL7047
- Coating and adhesives PVC-free
- Power strip with 5-outlet sockets and power switch, lead and earthed plug
Frame:
- 2 extruded aluminium profiles with multiple grooves, 1200x120x40mm (w x h x d)
- 8 equal grooves in each aluminium profile (3 on each side and 1 on the top)
- Grooves to accommodate industry-standard mountings
- 8 H-shaped aluminium profiles, 1150mm, 2 x 3-level panel mounting frames to accommodate punched hole panels for assembly and project work or training panels in A4 format on either side of the stand
- Space to add one or two power supply ducts
- Integrated height adjustable feet to compensate for uneven floors
- Trolley base made of rectangular tubing with 4 steerable casters, 2 with brakes
- Trolley frames made of strong rectangular all-round tubing
- Acid-resistant epoxy-resin coating approx. 80µm thick, colour RAL7047
Dimensions:
- Height of table top 760mm
- Dimensions 1250x1995x760mm (w x h x d)
