Item No.: CO4204-8D

Course Measurement technology 4: RLC measurement

Including:

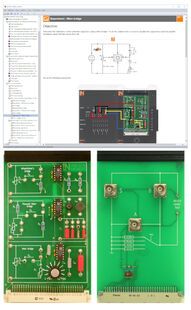

  • 1 Experiment card with adjustable Wheatstone, Maxwell-Wien and Wien bridges
  • 1 Experiment card with LCR measuring instrument
  • Storage case
  • Labsoft Browser and course software

Course contents:

  • Distinguishing between deflection and offset methods
  • Explanation of how bridges are used for measurement
  • Measuring resistance and impedance using a Wheatstone bridge
  • Use of Maxwell-Wien bridges
  • Measuring capacitance using a Wien bridge
  • Introduction to and application of impedance measurement
  • Carrying out RLC measurements
  • Knowledge and use of criteria for selecting appropriate measuring range
  • Course duration: 3 h approx.
