Interactive Lab Assistant: Control of stand-alone networks with Micro Grid

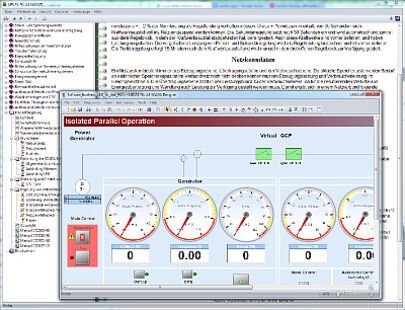

The experiment instructions come in the form of an Interactive Lab Assistant course. This multimedia course is a step-by-step guide through the topic of Control of stand-alone networks with Micro Grid. The physical fundamentals are conveyed using easy to understand animations. The Interactive Lab Assistant in conjunction with the virtual instruments constitutes a comfortable experimenting environment.

Special features:

• Interactive experiment setups
• Measured values and diagrams can be stored in the experiment instructions per drag and drop
• Virtual instruments can be started directly from the experiment instructions
• Includes questions with feedback and evaluation logic for progress monitoring
• Documents can be printed out for hardcopy of experiment instructions including solutions
• Labsoft browser, course software and virtual instruments
• Course duration 14 h approx.

Training contents

• Fundamentals of isolated, stand-alone networks.
• Control of a generator in a stand-alone network.
• Control of multiple generators in a stand-alone network
• Control of multiple generators in parallel generation mode
• Coordination of energy needs and generating capacity in stand-alone networks.
• Use of modern information technology such as networked sensors/actuators, PLC control and the SCADA operating environment
• "Smart metering" of a "slack bus" to make a sub-network autonomous.
• Manual control
• Voltage control
• Frequency control
• Torque control
• Power factor (cos phi) control
• Droop control
