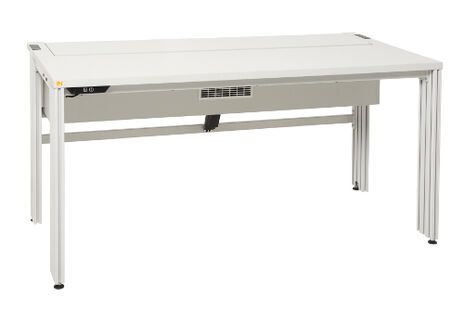

SybaPro laboratory table, motorised fold-out power duct, 2000x760x900mm

High-quality lab bench from the SybaPro range with aluminium table legs and integrated power supply duct which can be lowered by means of an electric motor and accommodates 19'', 3HU inserts and panels. Compatible with all add-ons and extensions from the SybaPro system.

Table top:

• 30mm table top made of highly compressed multilayered chipboard conforming to DIN EN 438-1
• Colour grey, RAL 7035, with double-sided 0.8mm slightly textured laminate coating (Resopal) in compliance with DIN 16926
• Resistant to many chemicals and reagents such as dilute acids and alkalis
• Not sensitive to heat, e.g. molten solder or heating at specific points by soldering irons or lit cigarettes, for example
• Table tops bordered with solid, impact-resistant edging made of 3mm thick plastic, colour RAL 7047
• Coating and adhesives PVC-free

Power supply duct with lowering mechanism

• Integrated power supply duct to accommodate 19'', 3HU/360 PU inserts and panels
• 2 Buttons for raising/lowering by means of electric motor
• Mains connection with saftey plug 230V/50Hz
• Double sealing lip ensures protection against fingers getting trapped between the table top and the console housing
• Pre-wired with power supply bus system for 3HU inserts or panels
• High-current plug connectors of protective type IP20 as per DIN EN 61984:2009
• Terminal strips for connecting mains voltage on site and for external raising/lowering control

Table base:

• Table legs made of multiply grooved extruded aluminium
• 8 Equal grooves in each aluminium profile (3 on each side and 1 on the top)
• Grooves to accommodate industry-standard mountings
• Each profile has 2 isolated cable ducts for wiring
• Integrated height adjustable feet to compensate for uneven floors
• Trolley frames made of strong rectangular tubing all the way round with all the necessary drill holes for legs and installation of under-table cabinets
• Frames have additional cross beam in the middle
• Acid-resistant epoxy-resin coating, approx. 80µm thick, colour RAL 7047

Dimensions:

• Height of table top 760mm
• Dimensions 2000x760x900mm (w x h x d)
