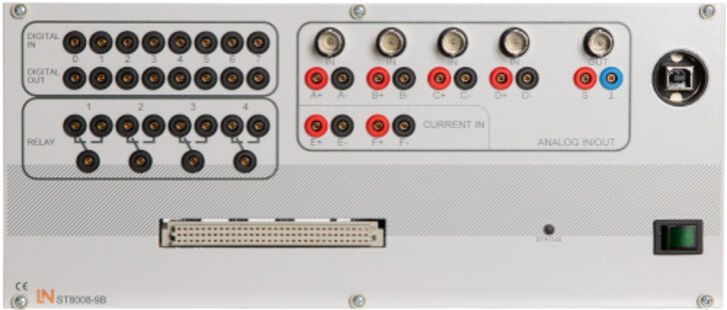

UniTrain Interface 4.0, 3HU, (60PU)

The UniTrain 3 HU Interface is the central unit of the UniTrain system. It incorporates all inputs and outputs, switches, power and signal sources and measurement circuitry needed to perform experiments. The Interface is controlled via the connected PC.

Equipment interface:

• 32-bit processor with measurement data memory
• USB 2.0 interface, data rate 12 Mbit/s
• UniTrain bus for simultaneous connection and accommodation of any number of modules
• All inputs and outputs are clearly configured and arranged in arrays.
• Insert device for the 3HU power duct
• Prepared for connection of 2 mm safety measurement leads
• Multi-coloured LEDs for operating status indication
• Integrated power supply unit with wide-range input 100-264 V, 47-63 Hz, output 24 V / 5 A

Outputs:

• Adjustable analog output, +/-10 V, 0.2 A, DC – 5  MHz, via BNC and 2-mm sockets
• Analogue fixed voltage output 5 V, 1 A (tapped via 2-mm socket on Experimenter CO4203-2B)
• 2 analogue fixed voltage outputs +/- 15 V, 1 A (tapped via 2-mm sockets on Experimenter CO4203-2B)3 variable analog outputs +/- 20V, 1 A, DC-150 Hz (requires CO4203-2B)
• 3 adjustable analogue outputs +/- 20 V, 1 A, DC-150 Hz (tapped via 2-mm sockets on Experimenter CO4203-2B)
• 8 Relays, 24 V DC/1 A, of which 4 are accessed via 2-mm sockets
• 16-bit digital signal output, of which 8 bits are accessed via 2-mm sockets, TTL/CMOS, clock frequency 0 – 100 kHz, electric strength +/- 15 V

Inputs:

• 4 Analog differential amplifier inputs with 10 MHz band width, safe for voltages up to 100 V, sampling rate 100 mega samples, 9 measuring ranges, memory depth 4 x 8 k x 10 bits, inputs via BNC (2 inputs) or 2-mm sockets (4 inputs)
• 2 Analog inputs for current measurement, overcurrent-protected up to 5 A, sampling rate 250 kilo samples, 2 measuring ranges, resolution 12 bits, connection via 2-mm sockets
• 16-bit digital signal input, of which 8 bits are accessed via 2-mm sockets, memory depth 16 bit x 2 k, TTL/CMOS, sampling rate 0 – 100 kHz, electric strength +/- 15 V,

Virtuelle Instrumente (Messgeräte und Quellen):

• 2 x Voltmeter VIs, 2 x Ammeter VIs: AC, DC, 9 ranges, 100 mV to 50 V, true RMS, AV
• 1 x Power meter, 9 ranges, 100 mV to 50 V
• 1 x 2-channel ammeter VI: AC, DC, 2 ranges, 300 mA and 3 A, TrueRMS, AV
• 1 x 2-channel voltmeter VI: AC, DC, 9 ranges, 100 mV to 50 V, TrueRMS, AV
• 1 2-/4-channel oscilloscope: band width 10 MHz, 25 time ranges, 100 ns/div to 10 s/div, 9 ranges 20 mV/div to 10 V/div, trigger and pre-trigger, XY and XT modes, cursor function, addition and multiplication function for 2 channels
• 1 x VI Spectrum Analyzer: 9 voltage ranges 100 mV to 50 V, input frequency range 3 Hz to 1 MHz, time domain display
• 1 X VI Bode-Plotter: 9 voltage ranges 100 mV to 50 V, frequency range 1 Hz - 5MHz, time domain display and locus diagram
• 1 x Adjustable DC voltage VI 0 - 10 V
• 1 x Function generator VI: 0.5 Hz - 5 MHz, 0 - 10 V, sine, square, triangular,
• 1 x Arbitrary generator VI, 1 x Pulse generator VI
• 1 x VI with 16 digital outputs, 1 x VI with 16 x digital inputs, 1 x VI with 16 digital input/outputs. Display modes: binary, hex, decimal and octal numerals
• 1 x Three-phase power supply VI, 0 - 150 Hz, 0 - 14 Vrms, 2 A (requires CO4203-2B)
• 1 x Adjustable DC power supply VI, 3 x (-20 V - +20 V), 2 A (requires CO4203-2B)
• 1 x Three-phase power supply VI with additional phase-shift and clock rate adjustment (requires CO4203-2B)
• 1 x VI 8 x relay, 1 x VI Multimeter: Display of a multimeter (optional; LM2330, LM2331 or LM2322) in LabSoft

Includes:

• 3HU insert interface incl. power supply unit
• USB cable
• CD with basic software
• Instruction manual

System requirements:

• Personal computer with Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 (32 or 64 bit)
• CD-ROM drive for installing software
• USB port for connection to Interface

Dimensions/weight:

• Weight: approx. 2.1kg
• Dimensions: 3HU/60PU
