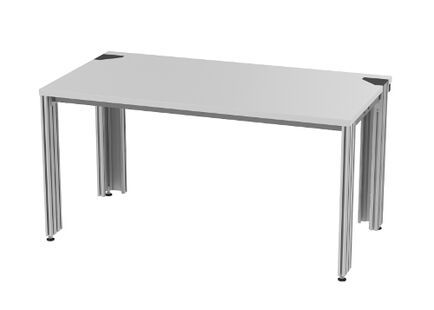

SybaPro system table with power supply ducting in legs 160*80, 1600x760x800 mm

High-quality lab table with 2 plain aluminium-profile legs (front) and 2 aluminium-profile legs with triangular power supply ducting (rear), compatible with all add-on units and extensions in SybaPRO system range.

The rear table legs are intended to accommodate various kinds of power supply equipment.

Table top:

• 30mm table top made of highly compressed, multi-layered fine chipboard conforming to DIN EN 438-1
• Colour grey, RAL7035
• 0.8mm slightly textured laminate coating (Resopal-HPL) conforming to DIN 16926 on both sides
• Resistant to many chemicals and reagents, such as dilute acids and bases
• Resistant to heat, e.g. liquid solder and point heating caused by soldering irons and similar
• Table-top frame with solid, impact-resistant edging made of 3mm thick coloured plastic, colour RAL7047
• Coatings and adhesive are PVC-free

Frame:

• All table legs are made of extruded aluminium with profile
• Grooves to accommodate industry-standard equipment holders
• Built-in, height-adjustable feet to compensate for uneven flooring
• Table frames made of rigid rectangular tubing around all four sides including all necessary drill holes for mounting of table legs and under-table cabinets
• Reinforced frame with additional central cross-strut
• Acid-resistant epoxy-resin coating, thickness 80 µm approx., colour RAL7047

Front table legs:

• Extruded aluminium-profile legs with 8 identical grooves (3 on each side + 1 each front and rear)
• Two separate cable ducts inside for wiring

Rear table legs with power supply ducting:

• Triangular aluminium-profile ducting (extensible upwards)
• Designed to accommodate various devices for of power and safety protection (no additional power ducting required)
• Extruded aluminium-profile legs with 6 identical grooves (2 on each side + 1 each front and rear)
• Each leg accommodates a maximum of 4 x 1 MU  modules
• Pre-wired with supply bus system for special MU inserts or panels
• Terminal strips for connection to power supply
• High-current quick-release connectors of protection class IP20 conforming to DIN EN 61984:2009
• Power ducts can also accommodate additional wiring inside them

• All table legs are powder-coated, standard colour: grey (RAL7047), other colours also available

Dimensions:

• Dimensions 1600x760x800mm (w x h x d)
