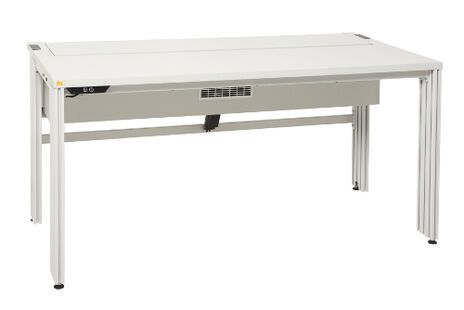

SybaPro laboratory table, motorised fold-out power duct 1200 x 760 x 900 mm

High-quality lab bench from the SybaPro range with aluminium table legs and integrated power supply duct which can be lowered by means of an electric motor and accommodates 19'', 3 HU inserts and panels. Compatible with all add-ons and extensions from the SybaPro system.

Table top:

• 30mm table top made of highly compressed multilayered chipboard conforming to DIN EN 438-1
• Colour grey, RAL 7035, with double-sided 0.8mm slightly textured laminate coating (Resopal) in compliance with DIN 16926
• Resistant to many chemicals and reagents such as dilute acids and alkalis
• Not sensitive to heat, e.g. molten solder or heating at specific points by soldering irons or lit cigarettes, for example
• Table tops bordered with solid, impact-resistant edging made of 3mm thick plastic, colour RAL 7047
• Coating and adhesives PVC-free

Power supply duct with lowering mechanism

• Integrated power supply duct to accommodate 19'', 3 HU/204 PU inserts and panels
• 2 Buttons for raising/lowering by means of electric motor
• Mains connection with saftey plug 230V/50Hz
• Double sealing lip ensures protection against fingers getting trapped between the table top and the console housing
• Pre-wired with power supply bus system for 3 HU inserts or panels
• High-current plug connectors of protective type IP 20 as per DIN EN 61984:2009
• Terminal strips for connecting mains voltage on site and for external raising/lowering control

Table base:

• Table legs made of multiply grooved extruded aluminium
• 8 Equal grooves in each aluminium profile (3 on each side and 1 on the top)
• Grooves to accommodate industry-standard mountings
• Each profile has 2 isolated cable ducts for wiring
• Integrated height adjustable feet to compensate for uneven floors
• Trolley frames made of strong rectangular tubing all the way round with all the necessary drill holes for legs and installation of under-table cabinets
• Frames have additional cross beam in the middle
• Acid-resistant epoxy-resin coating, approx. 80µm thick, colour RAL 7047

Dimensions:

• Height of table top 760mm
• Dimensions 1200x760x900mm (w x h x d)
