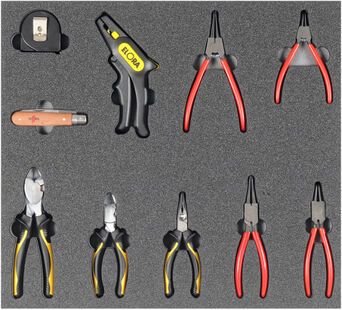

Automotive tool set 9, VDE pliers set (10 parts), inlay size 500 x 450 mm

Automotive technology tool set 9 for drawers – VDE pliers set, consisting of 10 parts in two-colour (black/grey) foam inlay of size 500x450mm,
suitable for drawers with a panel height of at least 100mm.

- Chromed and polished, blades inductively hardened
- 2-component plastic handles
- VDE insulation, standardised to DIN 5238, forms A/H/ISO 5746

Set consisting of:

• 1 Pair of manual side cutters, 1 universal side cutter
  Suitable for cutting hardened steel wire, piano wire, tensile strength 2300 N/mm²
  Material: Chrome-vanadium 80 CrV 2, W no. 1.2235
• 1 Round-nosed pliers
  Straight design with side cutting function
  Material: hardened/tempered steel, C45, W no. 1.0503
• 2 Sets of pliers for external sealing rings
  For 10-25mm² diam. rings, 90° angle
  For 19-60mm² diam. rings, straight
  • Standardised to DIN 471, DIN 983 and DIN 5256
  • Material: Chrome-vanadium 31 CrV 3, W no. 1.2208
• 2 Sets of pliers for internal sealing rings
  For 19-60mm² diam. rings (holes), 90° angle
  For 19-60mm² diam. rings (holes), straight
  • Standardised to DIN 472, DIN 984 and DIN 5256
  • Material: Chrome-vanadium 31 CrV 3, W no. 1.2208
• 1 Set of strippers, for wire diameters 0.2 to 6.0mm²,
  With length adjustment from 5 - 12mm
  Including side cutters for up to 2mm² diam.
  Blades made of hardened special steel, plastic handles
• 1 Folding cable knife, folding blade in wooden hilt, reinforced rivet joint
• 1 Rolled tape measure, 3m, with view window
  Automatic tape rewind including catch, dual scale and non-slip end hooks
  Curved tape measure, particularly resistant to kinks, with belt clip
