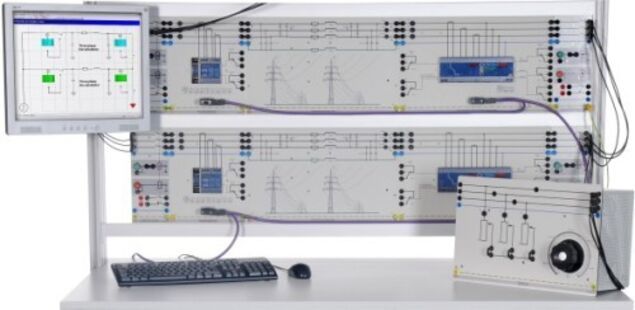

ELP 6 Protection of Parallel-connected Lines

ELP 6 Protection of Parallel-connected Lines

Training contents:

  • Protecting parallel-connected lines with different overcurrent time relays
  • Parallel operation in the fault-free state
  • Determining minimum response values for non-directional overcurrent time relays
  • Determining directions of protection for directional overcurrent time relays
  • Determining minimum response values for directional overcurrent time relays
  • Time grading for overcurrent time relays
  • Checking selectivity through combined overcurrent and directional measurements
  • Networking protective relays

Weboffer

 0 Article
Equipment set / product

Supplement to basic set, consisting of:
1
Time Overcurrent Relay
 Time Overcurrent Relay CO3301-4J
2
Time Overcurrent Relay with directional feature
 Time Overcurrent Relay with directional feature CO3301-4D
1
Transmission line model 150km/300km (93.2miles/186.4miles)
 Transmission line model 150km/300km (93.2miles/186.4miles) CO3301-3A
2
Power switch module
 Power switch module CO3301-5P
Accessories:
5
Connection plugs for PROFIBUS with PG socket and terminating resistor
Connection plugs for PROFIBUS with PG socket and terminating resistor LM9182
10
Connection cable for PROFIBUS, per metre
 Connection cable for PROFIBUS, per metre LM9181
1
Wire stripper for PROFIBUS cables
Wire stripper for PROFIBUS cables LM9184
Media:
1
Interactive Lab Assistant: Protective systems for high-voltage transmission line
 Interactive Lab Assistant: Protective systems for high-voltage transmission line SO2800-6L
Software:
1
Software SCADA Viewer
 Software SCADA Viewer SO4001-3H
1
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow
Patch cable Cat5E 1x 1 m yellow, 2x 2 m yellow LM9057
1
USB 2.0 Ethernet adapter, 10/100
USB 2.0 Ethernet adapter, 10/100 LM8257
1
5-Port Ethernet Switch
5-Port Ethernet Switch LM9988
1
Interface converter USB/RS485
Interface converter USB/RS485 LM9025
Power supply:
1
Adjustable 3-phase power supply, 0-450V/2A
 Adjustable 3-phase power supply, 0-450V/2A CO3301-3Z
2
Multiple socket outlet, 6 fold, with illuminated switch
Multiple socket outlet, 6 fold, with illuminated switch ST8010-4J
Measuring instruments:
1
Three-phase power quality meter, display and long-term memory
 Three-phase power quality meter, display and long-term memory CO5127-1S
1
Multi13S digital multimeter
 Multi13S digital multimeter LM2330
1
Relay Test Unit
 Relay Test Unit CO3301-5N
Accessories:
40
Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), black, 1000V/32A CAT II SO5126-3R
10
Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), blue, 1000V/32A CAT II SO5126-3V
10
Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II
 Safety connecting plug 4mm with tap (2x), gr/ye, 1000V/32A CAT II SO5126-3W
1
Set of safety measurement cables, 4mm, 31 pcs
 Set of safety measurement cables, 4mm, 31 pcs SO5148-1L
1
SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm
 SybaPro experiment trolley, 3-level, 6 sockets, 1250x1970x800mm ST7200-7A
Additionally recommended:
1
Monitor holder for flat screen monitor of weight up to 15kg/33lbs
 Monitor holder for flat screen monitor of weight up to 15kg/33lbs ST8010-4T
1
Keyboard adapter for flat screen monitor holders
 Keyboard adapter for flat screen monitor holders ST8010-4G
1
Display for Power Transmission equipment
 Display for Power Transmission equipment ST8000-4L
1
ST7200-5L
