Course EloTrain 3: Semiconductors

Training contents:

• Fundamentals of semiconductors
• Doping of semiconductors
• Diodes in DC and AC circuits
• Half-wave and bridge rectifiers
• Displaying diode characteristics on an oscilloscope
• Light-emitting diodes
• Zenerdiodes
• Diode-like characteristics of transistor circuits
• Input, output and control characteristics of transistors
• Transistors in common emitter, common collector and common base circuits
• Transistors used as switches
• Fundamentals of field effect transistors (FETs)
• Input and output characteristic of a JFET
• Input and output characteristic of a MOSFET
• Characteristics of diacs, thyristors and triacs
• Thyristors used as switches
• Phase control using triacs and diacs

2-mm plug-in components:

• All components and jumpers equipped with gold-plated 2-mm contacts
• Housing made of transparent, high impact-resistance plastic
• Top featuring scratch-resistant, high-contrast screen print of type and circuit diagram of component
• Easy-to-open housing for repair purposes

Includes:

• 1x Switch
• 1x Push button
• 1x Incandescent lamp
• 1x LED, red
• 1x LED, green
• 1x 33 Ω, 2x 100 Ω, 1x220 Ω, 1x 330 Ω, 1x 470 Ω, 1x 680 Ω, 2x 1 kΩ, 1x 2.2 kΩ, 2x 4.7 kΩ, 3x 10 kΩ, 1x 22 kΩ, 1x 47 kΩ, 1x 100 kΩ resistors
• 2x Potentiometer, 1kΩ + 10 kΩ
• 1x 0.1 µF; 1x 0,22 µF, 1x 0.47 µF, 1 x 1 µF capacitors
• 1x 10 µF electrolytic capacitor
• 6 x Diodes, 1N4007, 1 x germanium diode, AA113
• 1 x Zener diode, 4.7 V, 1 x Zener diode, 10 V
• 1 x Transistor, BC547, base left
• 1 x Transistor, BD237, base left
• 1 x Field effect transistor, J112
• 1 x MOSFET BS170
• 1 x Diac, 1 x thyristor, 1 x triac

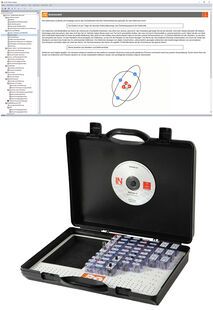

• Labsoft browser and course software
• Case for storage of component set
