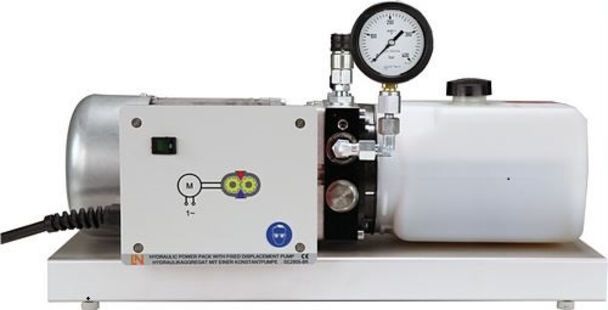

Hydraulic power pack with fixed displacement pump

Ideal for individual hydraulic work benches or UniTrain

• Portable pack aluminium base plate with rubber bearings
• Pump design:  gear wheel  with external cogs(0,8 ccm/U) and 4 MPa (40 bar) pressure valve
• Operating pressure 6 MPa (60 bars)
• Manometer, 0-60 bars
• Motor: AC, single-phase motor with starting capacitor and ON/OFF switch
• Tank:  volume 2.5 l, inspection window
• Low susceptibility to oil leaks, self-sealing coupling lugs and quick-release couplings for pressure and tank connectors
• Self-sealing coupling lug for unpressurised reflux
• Quick-release coupling for output
• Dimensions: 500 x 250 x 300 mm (W x D x H)
• Weight: 14 kg
• Funnel for filling system
• 2 high-pressure tubes with quick-release couplings
• Nominal voltage: 230 V AC, 50/60 Hz
• Nominal power: 0.37 kW
• Throughput  (at nominal speed): 1 l/min at 1400 rpm

Note:

For safety reasons the hydraulic power pack is always delivered without any oil inside. Please order the oil separately.
