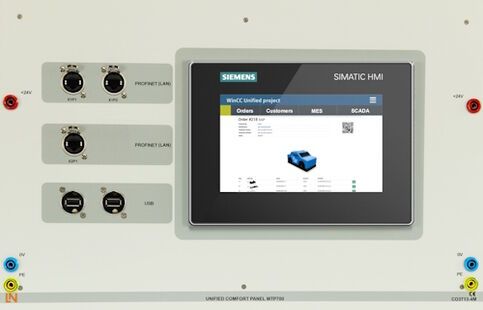

Touch panel MTP700 Comfort Trainer Package

This training system is a touch panel for controlling and observing machines and plant, which is designed for educational purposes.

Programming is carried out using the visualisation software WinCC Unified included in the package.

• Fully graphical colour display (16 million colours)
• 7" touch screen
• Resolution: 800 x 480 pixels
• Ports: PROFIBUS DP, PROFINET I/O, USB
• Display of fault and operational notifications
• Formulation management
• Large viewing angle
• Dimmable LED background lighting: 0 ... 100% range
• Power supply: 24 V DC
• Dimensions: 297 x 228 x 125 mm (HxWxD)
• Weight: 3 kg

Includes:

• HMI MTP700 modified for educational purposes
• Ethernet cross-connect cable
• Current version WinCC Unified



Important notes:

- The MTP 700 can only be programmed and incorporated into projects using WinCC Unified (TIA Portal).

- This item can only be ordered upon submission of a supplementary license agreement covering schools as well as public and commercial training centers.
