VDE building management trainer: wiring installation exercise, mains

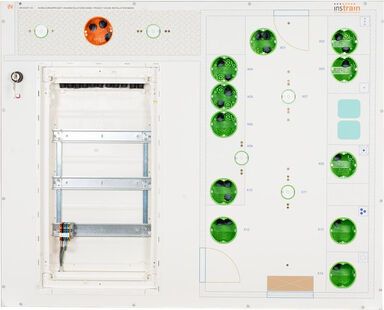

This wiring installation training system is designed to convey theoretical and practical knowledge in the subject of wiring installation. It is a compact, portable training system, well suited to carrying out practical project work.

Contents

• Planning and design of a service entry point
• Implementation of a customer contract
• Working out a sequence of work for installing wiring in various rooms
• Familiarisation with the various ways of installing wiring
• Application and observance of standards, guidelines and technical connection conditions
• Installation and wiring of various components, learning practical skills using genuine parts
• Measurement and testing of installed system
• Compilation of test reports in accordance with DIN/VDE standards

Includes

• Basic unit with sub-distribution box and cavity wall sockets
• 13 switches and sockets
• Electronic ballast
• Programmable multi-function switch
• 5 Incandescent lamps, 2 fluorescent lamps
• 1 Halogen lamp, 1 compact fluorescent lamp
• 5 Line circuit breakers
• Lightning and excess voltage arrester (C-type, D-type protection)
• 2 Dimmers
• Electronic transformer
• Motion sensor
• Oven socket
• RCD, 4-pole
• Remote pulse relay switches
• Cables, wires, terminals
• Storage case for installation material

Technical data

• Power supply, 400V CEE
• Turned on via key switch
• Installation embedded in plaster on front, all in conduits
• Punched hole grid for exposed wiring on rear with feed inside conduit
• Dimensions: 1000x800x220 mm (WxHxD)
